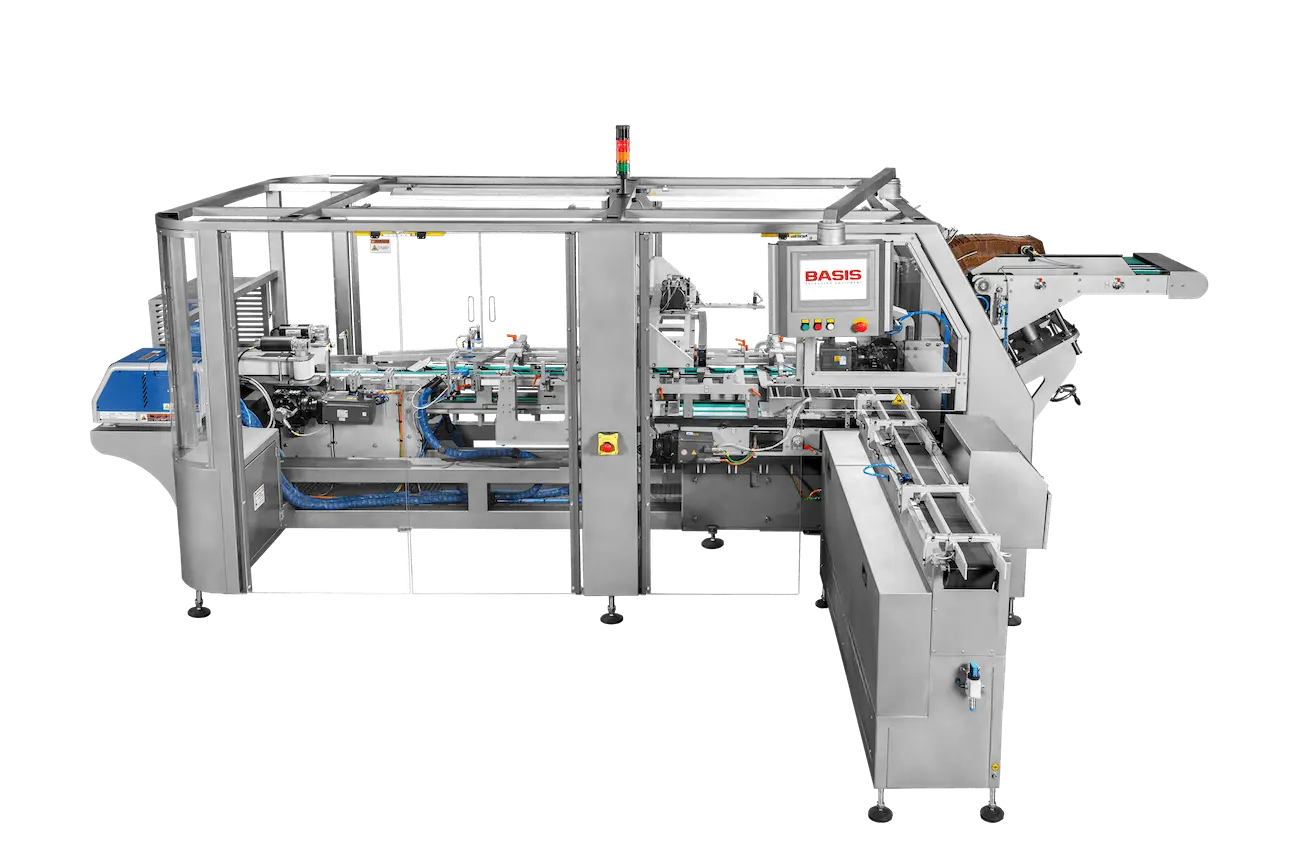

Horizontal cartoner Basis 90-HCI

The BASIS-90-HCI combines intermittent and continuous motion principles to deliver a balanced solution between precision and productivity in horizontal cartoning. Designed for flexible industrial applications, it ensures accurate product handling during critical operations while maintaining efficient and stable performance throughout the packaging cycle.Built on a modular platform, the machine adapts easily to a wide range of products and carton formats, providing reliable operation and seamless integration into automated production lines.

Read more Hide

↓

Designed for In-Line Integration:

Suitable for standard cartons and grouped retail packs.
Product infeed from single or multiple flow-pack lines.
Product loading via conveyor systems.
Easy integration with upstream production equipment.

Optional Equipment:

High-speed acceleration conveyor and collator for receiving products from continuous production lines, forming synchronized product groups, and accurately feeding them into moving cartons.
Automatic conveyor system for feeding, grouping, transferring, and loading products from the production line into the packaging carton.

Modification	BASIS-90-HCI-A	BASIS-90-HCI B	BASIS-90-HCI C	BASIS-90-HCI D
Capacity, boxes/min.,up to	50	70	90	90
Pitch of pack conveyor pushers	15’’	12’’	9’’	6’’
Box sizes: width A, mm height B, mm depth H, mm	80…310 20…100 100…350	80…240 20…100 100…300	60…170 20…80 100…300	40…100 15…80 80…250
Maximum number of pusher positions	1	2	4	4
Gluing station	Nordson/Robatech
Power consumption (without glue station), kW	9
Operating air pressure, Bar	6

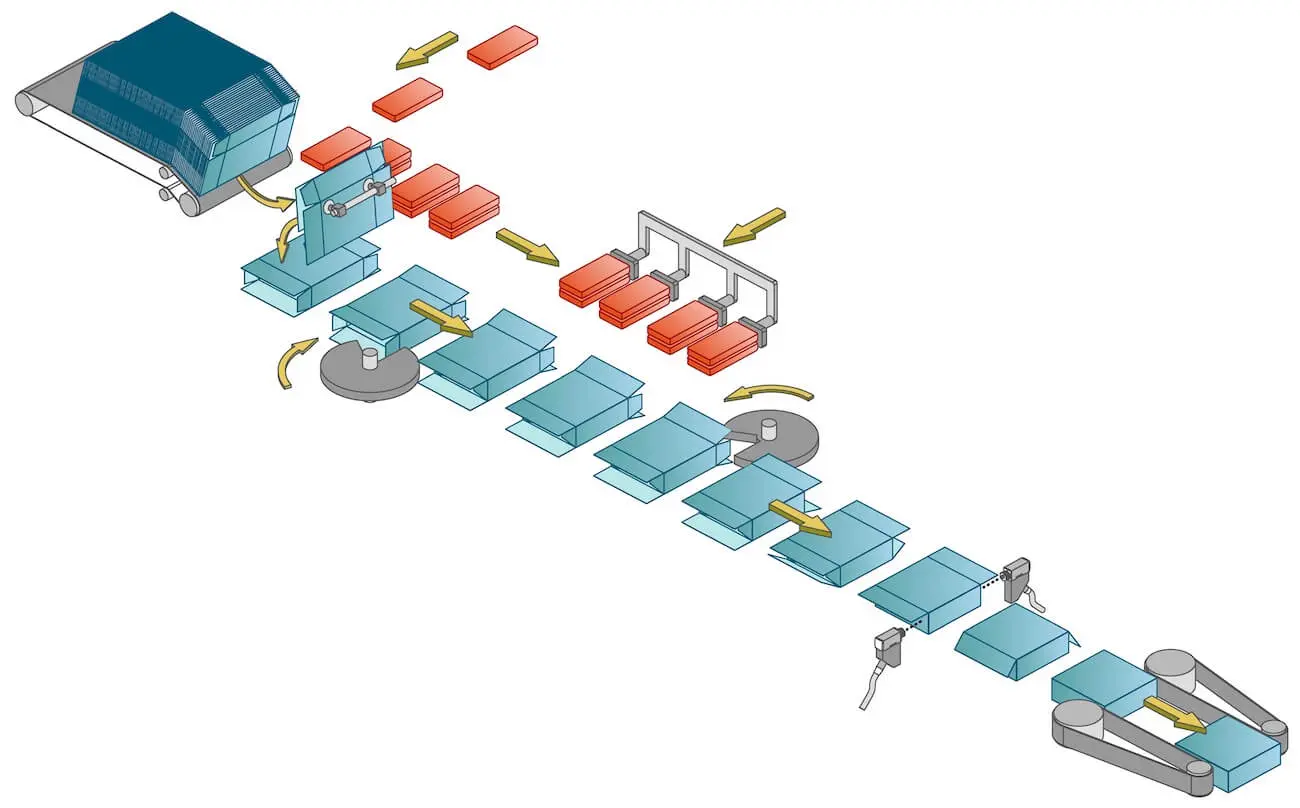

DIAGRAM OF THE TECHNOLOGICAL PROCESS:
