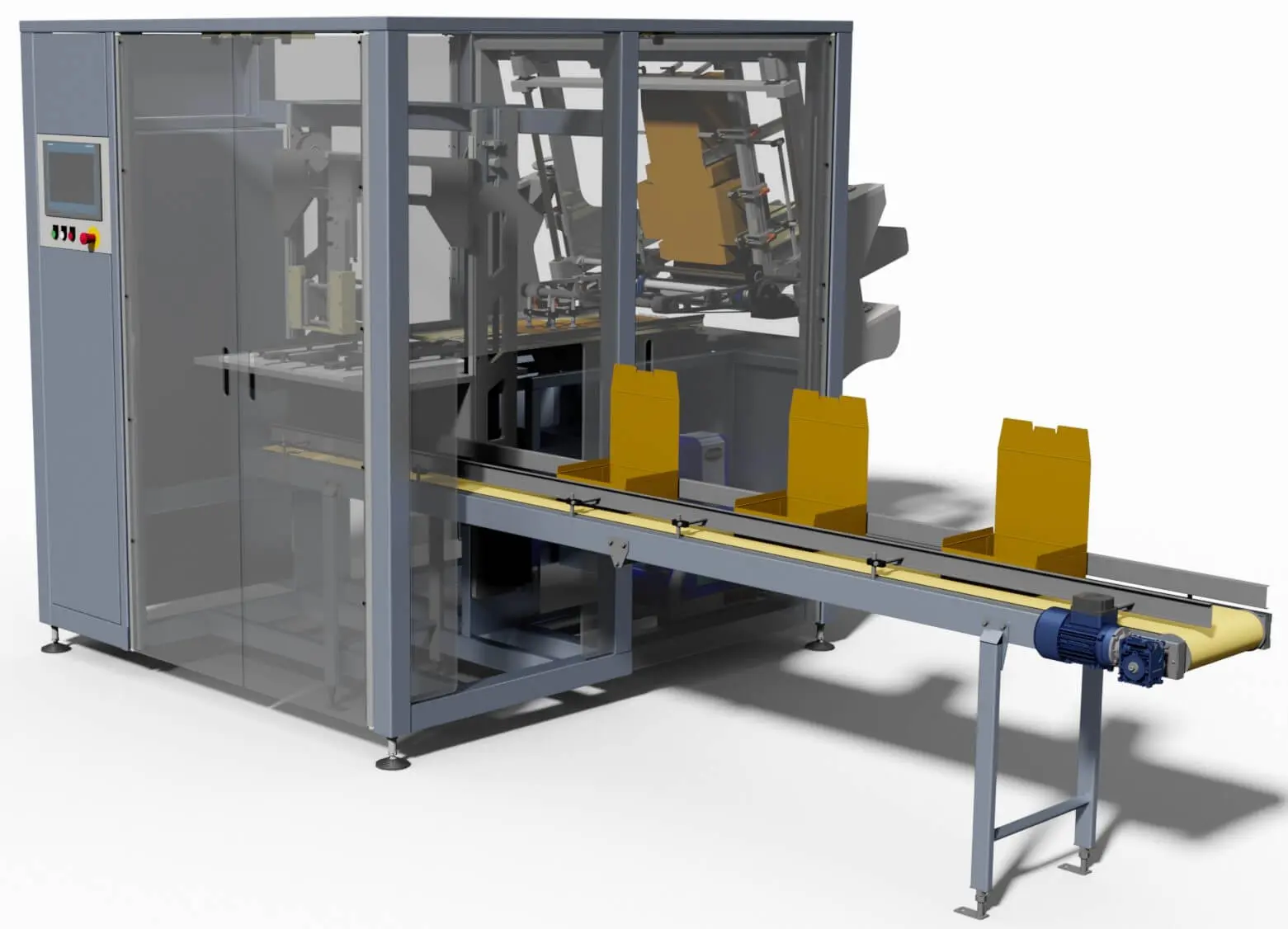

A top-load cartoning machine is a packaging machine designed for loading products into open-top cartons. These machines are ideal for applications where products are delicate, irregularly shaped, or require precise placement.
Key Features of a Top-Load Machine:
Products are inserted into cartons or trays from the top, either manually or automatically.
Can handle a variety of carton sizes and product types, including pouches, bottles, jars, or loose items.
Suitable for applications requiring accurate product placement, such as in the food, cosmetics, or pharmaceutical industries.
Often designed to integrate with upstream and downstream equipment, such as product conveyors and sealing units.
Offers a range of infeed systems (e.g., robotic arms, gravity feed, or pick-and-place systems) tailored to product characteristics.
| Modification | BASIS70 TL | BASIS70 TLD |
| Capacity, boxes/min., up to | 35 | 70 |
Box size:
|
80…200 100…270 30…80 |
80…200 100…270 30…80 |
| Number of mould positions | 1 | 2 |
| Gluing station | Nordson | Nordson |
| Power consumption (without glue station), kW |
4 | 5 |
| Operating air pressure, Bar | 6 | 6 |
