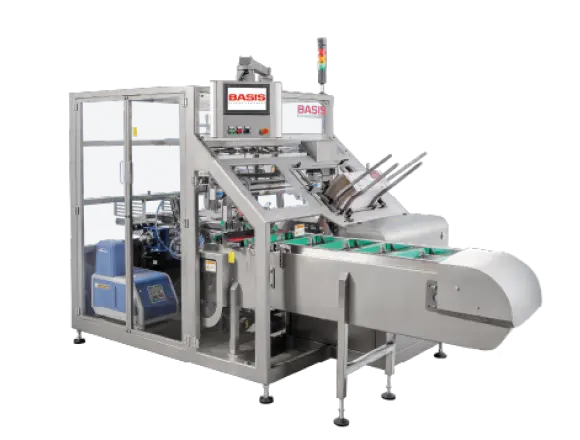

Horizontal intermittent cartoner Basis-60-HCI

An intermittent cartoning machine is designed to package products into cartons in a step-by-step process. This type of machine is typically used for smaller production volumes or where precision and flexibility are more important than high-speed operation. Suitable for various carton shapes and sizes, making it ideal for applications requiring frequent changes in packaging formats.

Read more Hide

↓

Compact Design:

Often smaller in size compared to continuous motion cartoning machines, suitable for space-constrained production areas.

Product Handling:

Capable of handling a wide range of products, including bottles, sachets, blister packs, tubes, and loose items.

Applications:

Pharmaceuticals
Food and beverages
Cosmetics
Consumer goods

Modification	BASIS-60-HCI-ECO	BASIS-60-HCI A	BASIS-60-HCI B	BASIS-60-HCI C
Capacity, boxes/min., up to	50	40	55	60
Pitch of pack conveyor pushers	10’’	12’’	10’’	6’’
Box sizes: width A, mm height B, mm depth H, mm	35…200 с20…120 130…400	35…250 20…200 130…400	35…200 20…200 130…400	35…100 20…200 130…400
Maximum number of pusher positions	1	1	1	2
Gluing station	Nordson/Robatech
Power consumption (without glue station), kW	5
Operating air pressure, Bar	6

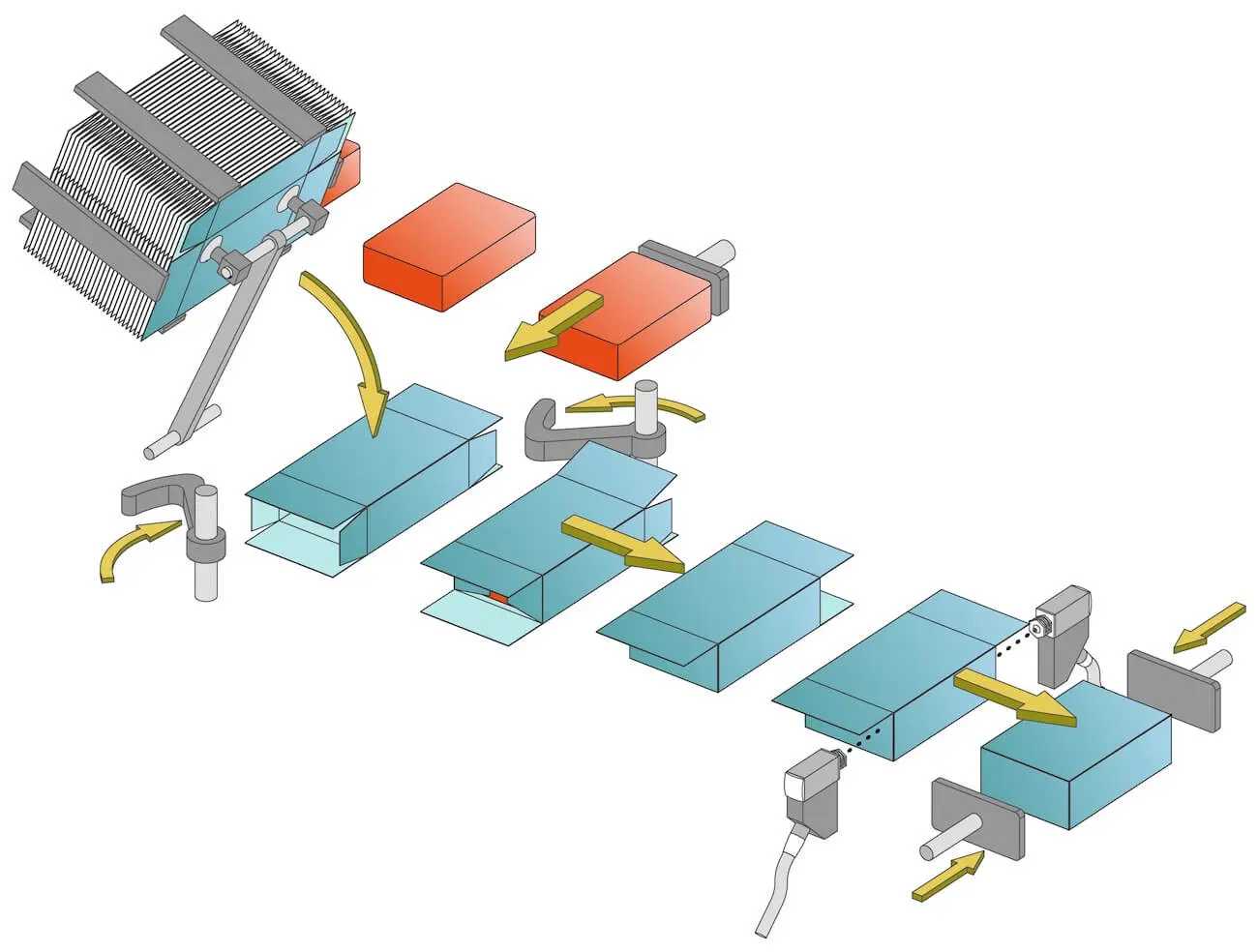

Diagram of the technological process:

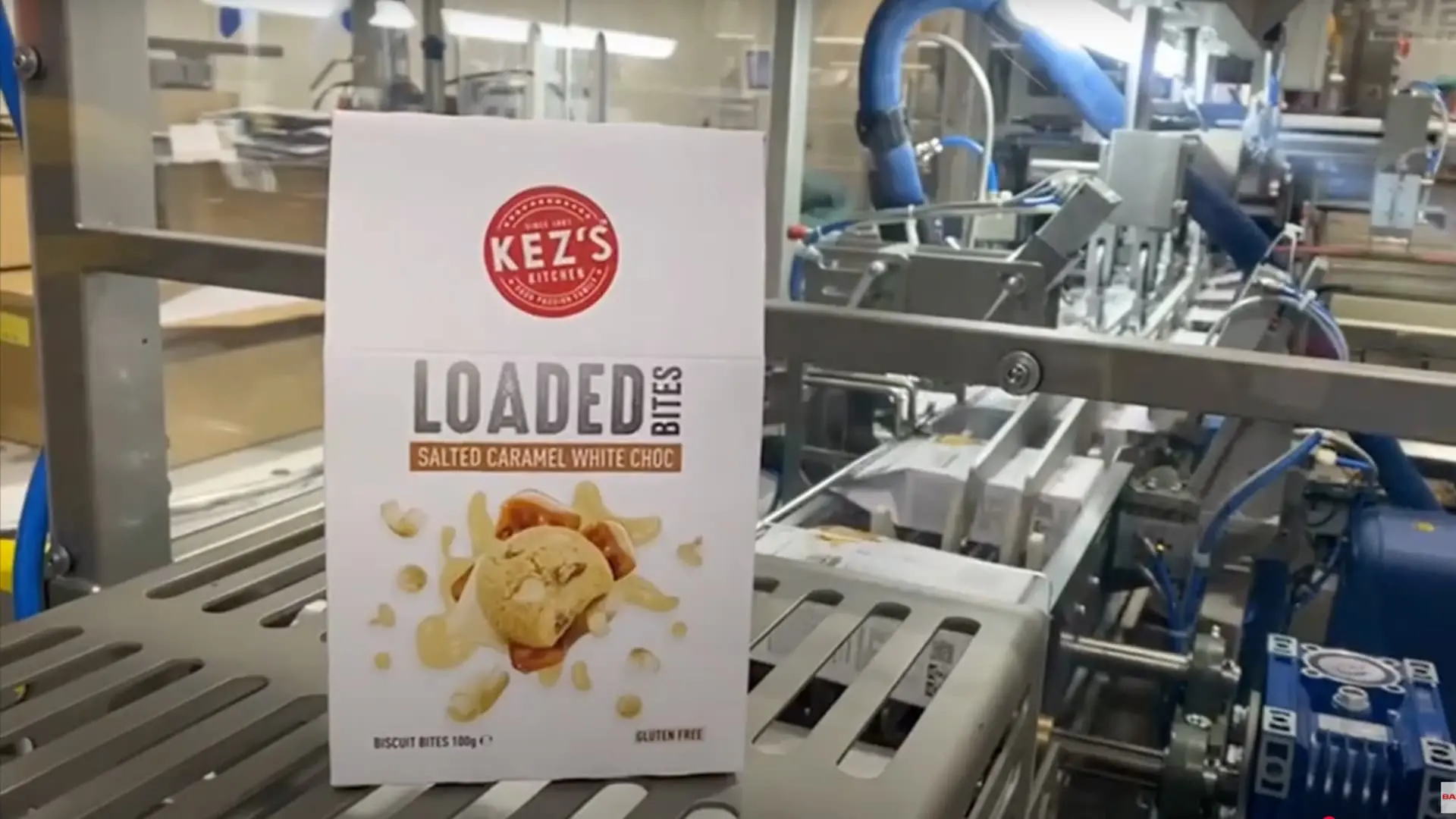

Horizontal Cartoner for Gable Top box

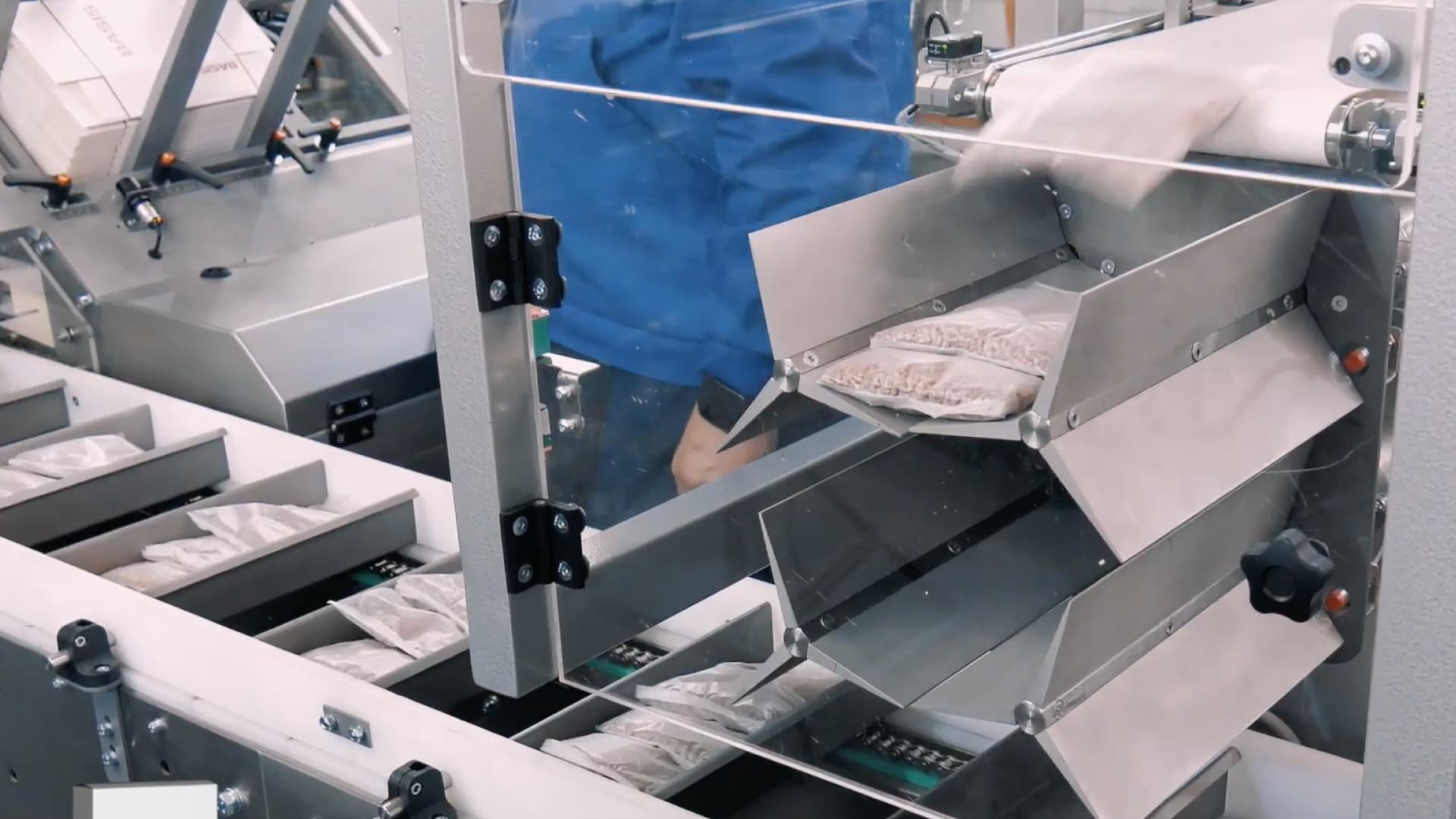

Automatic packing line for filling cooking sachets into a cardboard box
