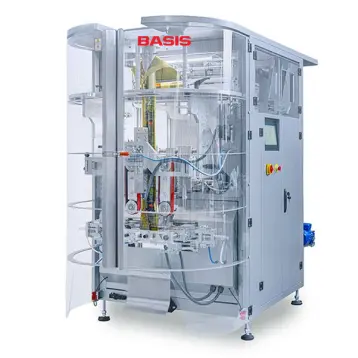

Vertical Packing Machines BASIS-20-VF

Main features:

Basis VFFS have a robust and ergonomic design
additional servo drive in the broaching mechanism ensures high accuracy of stopping the film
the bags are perfectly shaped, with precise dimensions, strong and high-quality seams
automatic control and adjustment of the film position, the ability to change the parameters directly during the operation of the machine
the ability to integrate reclosers (to preserve product properties) and other options
convenient and quick changeover when changing bag size

Model	BASIS-20-VF- CONT	BASIS-20-VF-D	BASIS-20-VF- ST/P/B	BASIS-20-VF- P/ST
Bag type	Pillow / Stand up	Doy Pack/ 3 side seal sachet	Stabilo / Pillow / Stand up	Pillow / Stand up
Capacity, boxes/min., up to	120	60	60	100
Bag length, mm	300	300	300	up to 470
Film width, mm	600
Power consumption, kW	8,3	8,0	8,2	7,5
Special features	The principle of operation is Continuous, maximum speed	Possibility to produce the bag with zip-lock	Wide range of bag shapes	The operating mode is intermittent, reliability and efficiency
